4.0m Bufferbelt-Cut Flowers ProcessLine-Yantai Equation Machinery Technology Co., Ltd

Fresh cut flowers are sorted and tied together,completing the processes of root cutting, leaf combing, stabbing and tying in one go,

Adopting Dutch Cyklop elastic rope bundling technology,the efficiency reaches 2000 bundles/smal

Suitable for bundling and organizing various fresh cut flowers with a length of 450mm~1500mm

Rose

Lily

Tulips

Carnation

Babysbreath

North American Holly

Chrysanthemum

Eustoma Grandiflorum

Using Dutch Cyklop elastic rope bundling technology,

bundling diameter 30-70mm

Equipped with a flexible tension cloth flower rack

Can be equipped with an extended conveyor belt for easy subsequent operation

Can be equipped with a root cutting and slag removal machine

Flower processing line main configuration

Model	BL70-400	Description	4.0m bufferbelt
Executive standards	Q/FCJX 1003-2020 "Fresh Cut Flower Processing Machine"
Main technical terms	1.The standard specification is 4 meters and non standard customization is acceptable.
	2.Use the same power supply as the host.
Main Business Terms	1.This product is an auxiliary equipment for the flower processing line, and quality assurance and after-sales service are based on the host part.
	2.The green O-ring and other vulnerable parts specified in the contract and/or product manual are not covered by the warranty.
	3.Due to continuous improvement of the product, the appearance, color, and structural details of the attached drawings in this table may not necessarily be consistent with the actual product, and the actual product shall prevail.

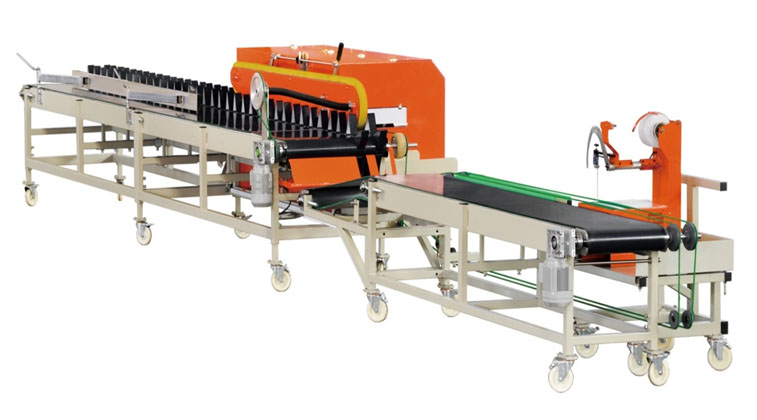

Actual photo of 4.0 meter buffer conveyor equipped with binder (this quotation does not include binder)

Main configuration of flower treatment line (continued)
Model	BL70-400	Description	4.0m bufferbelt
Actual photo of 4.0 meter buffer conveyor equipped with binder (this quotation does not include binder)

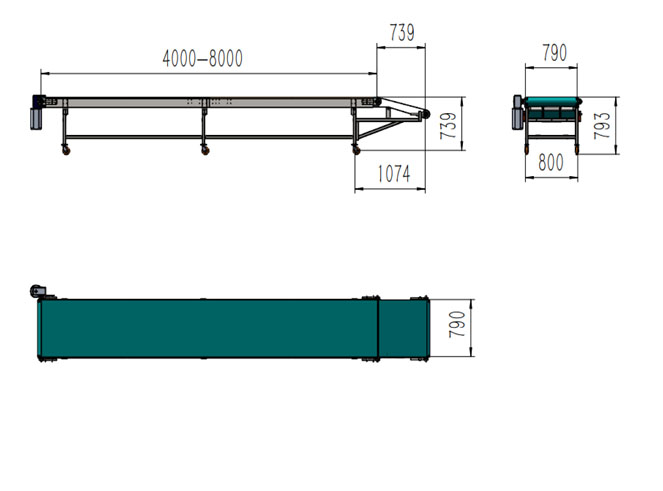

Overall dimension diagram

Innovation model, industry pioneer, Yantai equation

Contact Us: Technical Support: +8618562236717 Manager Liu Fax: +86-535-6723056

Service Commitment

1. Install and debug the equipment on-site, and provide maintenance, operation, and safety technical training to 2 operators.

2. The warranty period for the entire machine is one year, but the generator and/or engine are covered by the manufacturer's warranty terms.

3. The vulnerable parts specified in the contract and/or manual are not covered by the warranty.

4.0m Bufferbelt
