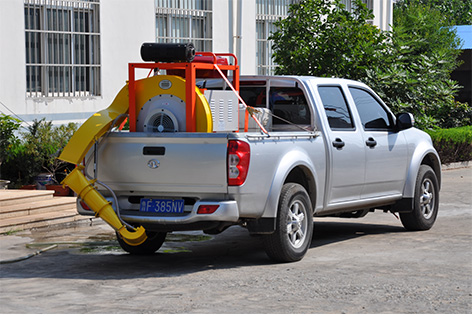

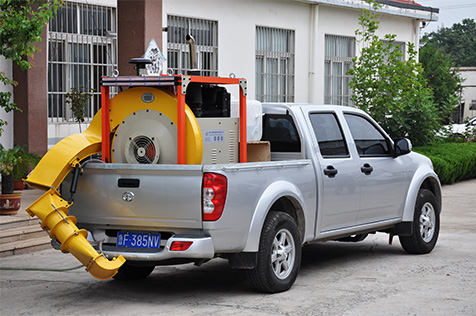

FCC36-D/YZ Vehicle-Mounted Highway Quick Sweeper-Vehicle Mounted Road Cleaning Machine-Yantai Equation Machinery Technology Co., Ltd

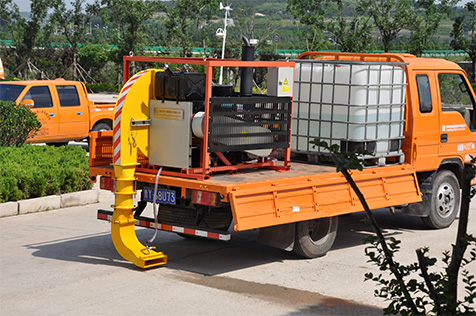

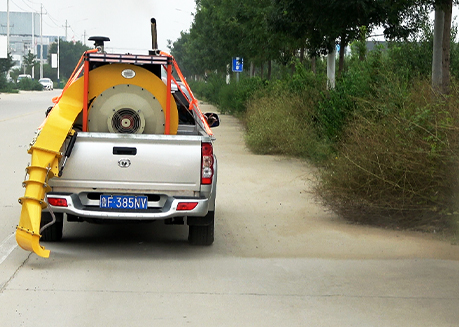

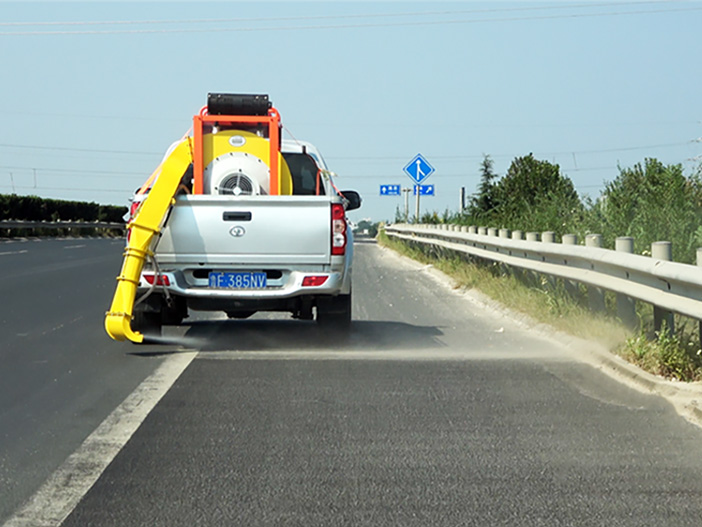

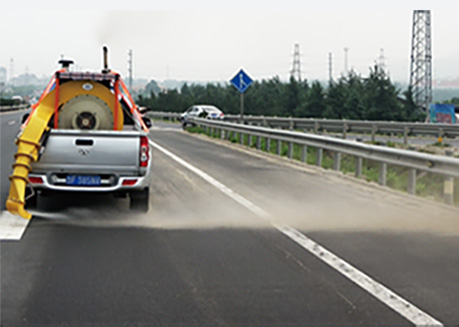

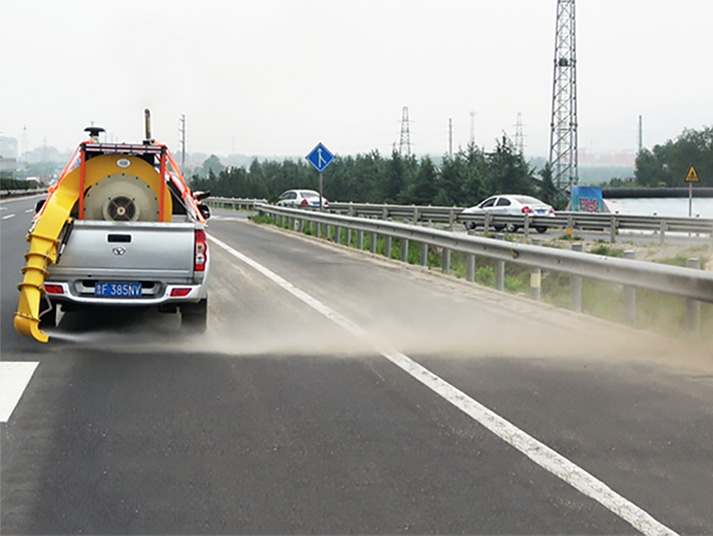

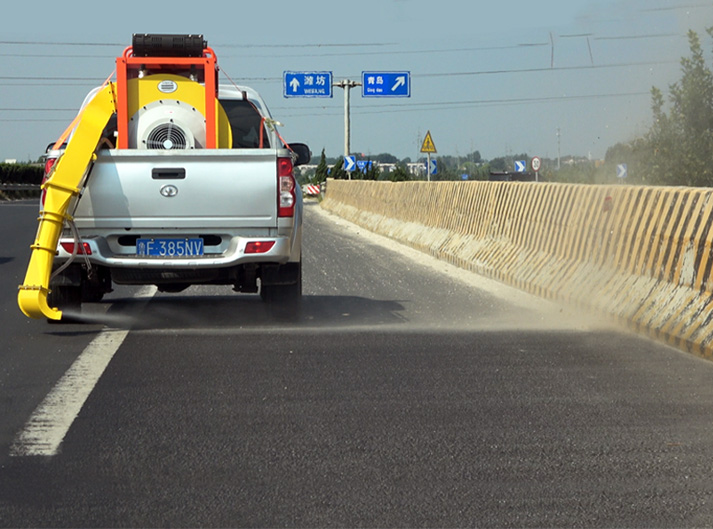

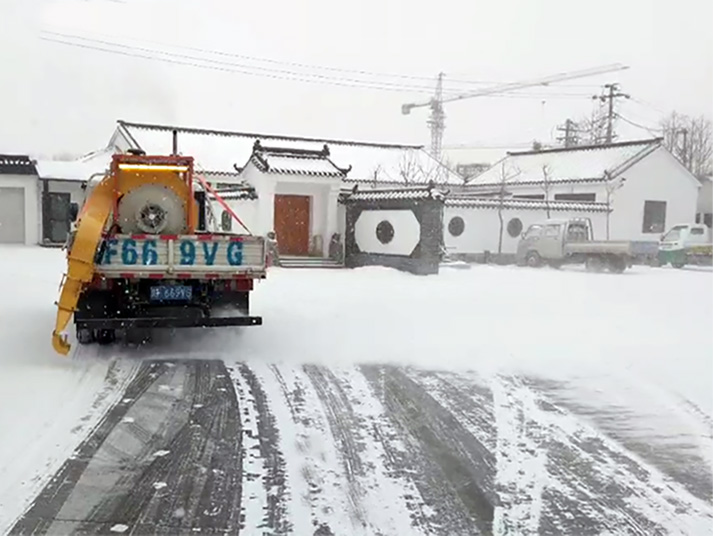

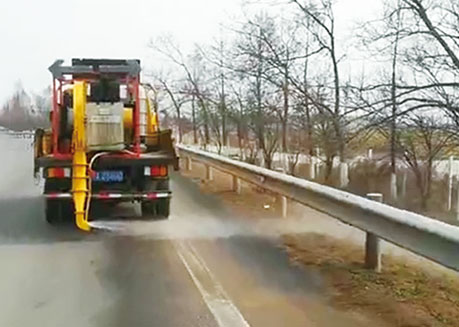

Suitable for rapid cleaning of various road surfaces, squares, and docks

Powered by a diesel or gasoline engine, the dedicated high-pressure centrifugal fan has a compact structure, small volume, and light weight

Specially designed fan with three-dimensional streamlined air duct for strong wind power

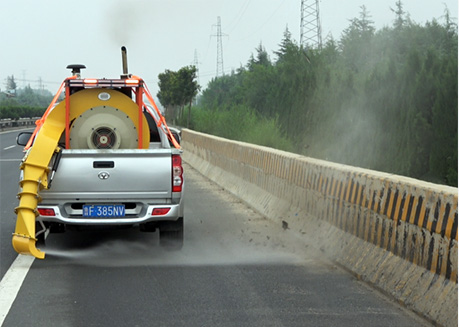

Water mist dust suppression meets environmental protection requirements

The height and angle of the hair dryer can be adjusted to meet various working conditions

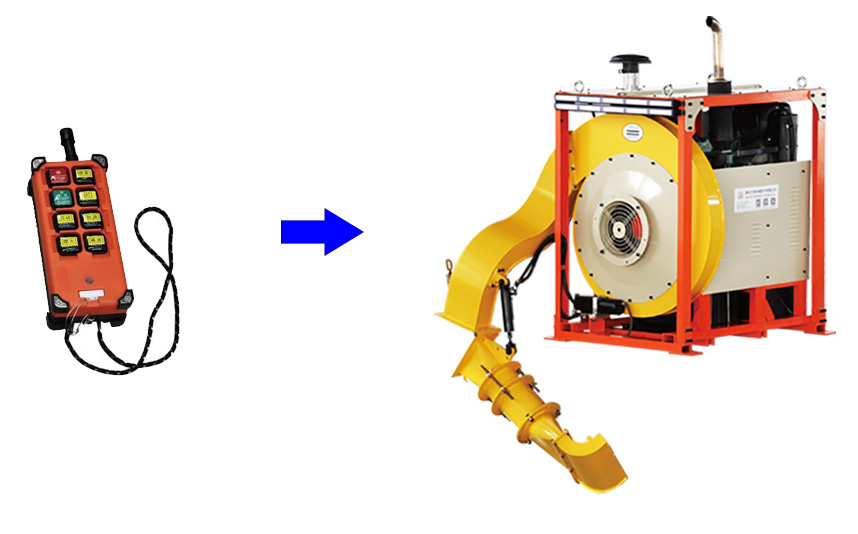

Single chip integrated control, fully remote control operation

Engine start

Engine growth rate

Engine deceleration

Engine shutdown

Warning light switch

Dust and water mist switch

Folding and retracting of air ducts

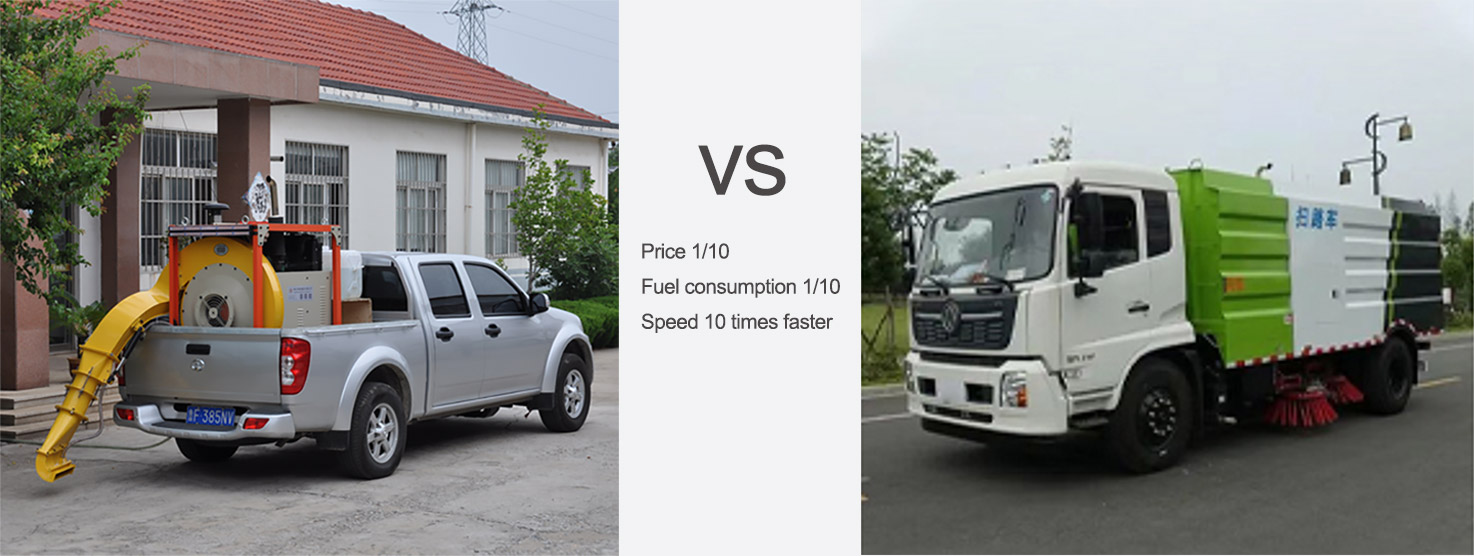

Low purchase cost, low operating expenses, and fast operation speed

Main configuration and technical parameter table

Components	Items	Parameters	Remarks
Engine	Model	Customized diesel engine 490
	Fuel type	Diesel
	Rated speed	2400 rpm
	Rated power	≥36kw @ 2400rpm
	Emission standard	National Standard II or National Standard III	Default National Standard II
Fan	Speed	≤ 2900rpm
	Air volume	7000 m³/h
	Air pressure	8000 Pa
	Noise	≤ 82 db @ 2900 rpm
	Folding mode of air duct	Remote hydraulic folding
Electronic control system	Type	Single-chip integrated control
	Operation mode	8-channel wireless remote control + wire control
Overall parameters	Reference fuel consumption	7-8L/h

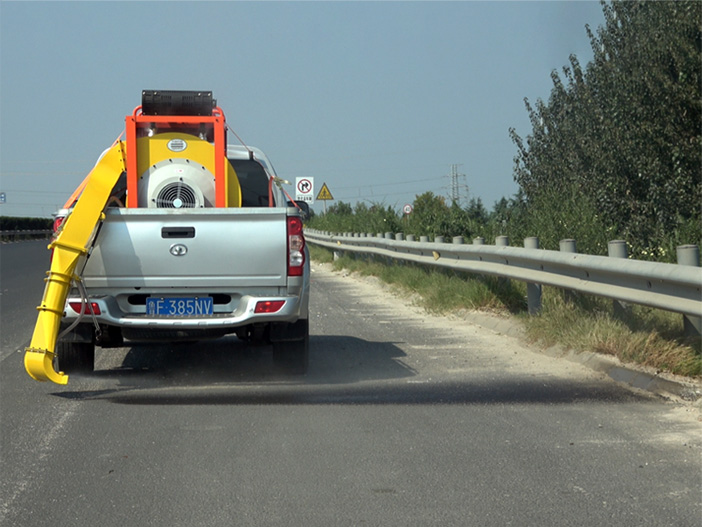

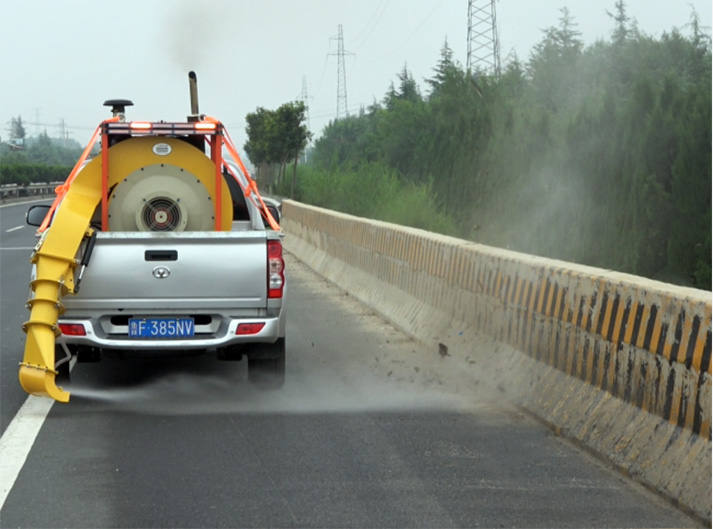

	Highway sweeping operation speed (reference value)	30 - 60 km/h
	Standard height of load-bearing chassis bottom plate	900 - 1100 mm	Exceeding this value requires explanation
	Capacity of dust reduction water tank	0.5 - 1 m³

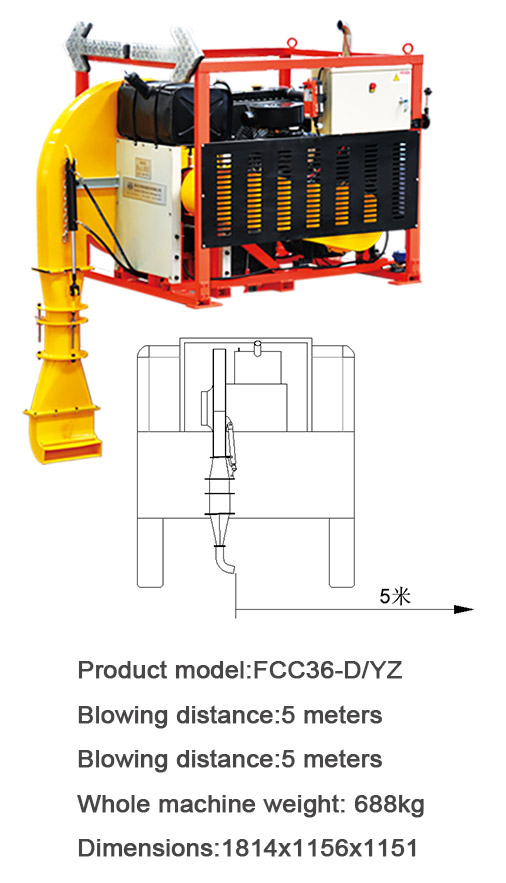

	Outline dimensions	1814mm x 1156mm x 1151 mm
	Whole machine weight	688kg

Innovation model, industry pioneer, Yantai equation

Contact Us: Technical Support: +8618562238161、+86-535-6723056 Fax: +86-535-6723056

Service Commitment

1. Install and debug the equipment on-site, and provide maintenance, operation, and safety technical training to 2 operators.

2. The warranty period for the entire machine is one year, but the generator and/or engine are covered by the manufacturer's warranty terms.

3. The vulnerable parts specified in the contract and/or manual are not covered by the warranty.
